Description
Planetary gearheads for stepper motors from NEMA 11 to NEMA 52, available with reduction ratios from 1:3 to 1:100. Compact design, low backlash.

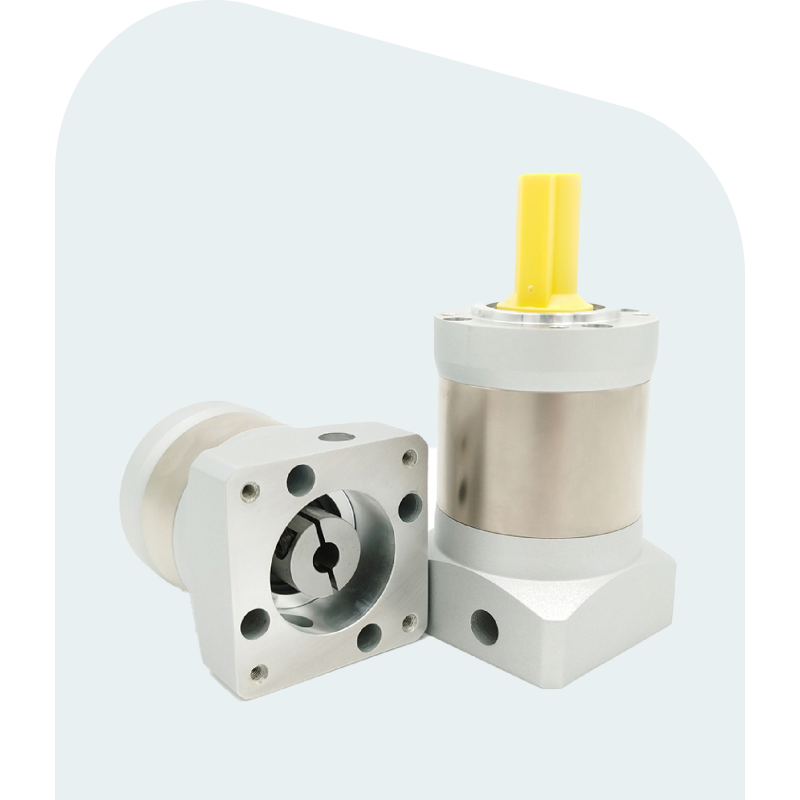

WLF060-L2-8-38.1-66.7-M4-25

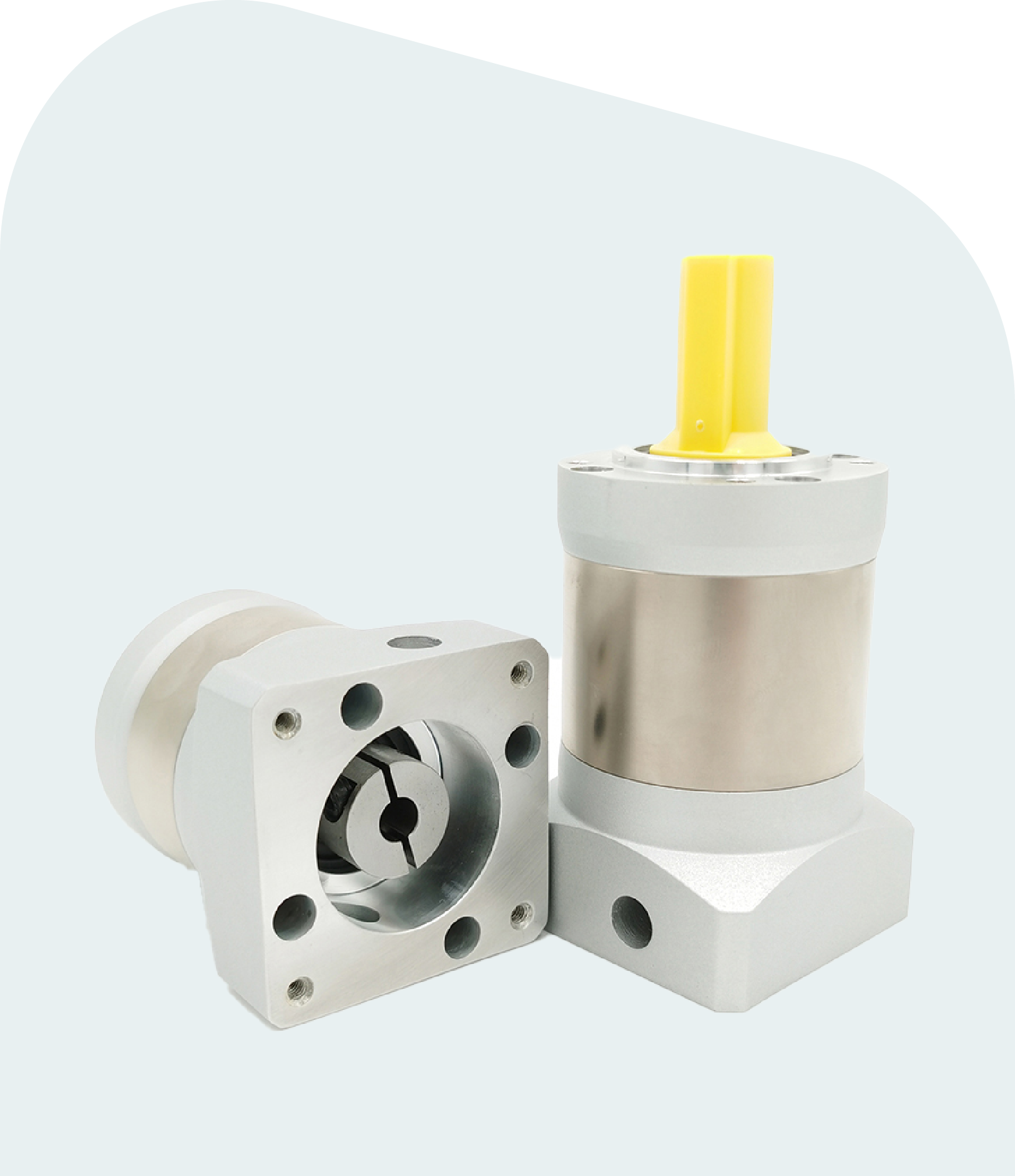

Stepper Precision Gear WLF | NEMA24 | Double Stages | Nominal Output Torque 31,5Nm
Quantity
Technical specifications
| NEMA | 24 |
|---|---|
| Reduction ratio | 25 |
| Weight (Kg) | 1,4 |
| Stage | Double Stages |
| Rated Output Torque (Nm) | 31,5 |
| Efficiency (%) | 94 |
| Protection Class | IP65 |
| Nominal input speed (rpm) | 3000 |
| Sudden Stop Torque (Nm) | 63 |
| Maximum Input Speed (rpm) | 8000 |
| Backlash (Arc min) | ?8 |
| Average Life span (Hour) | 20000 |
| Working Temperature (°C) | –25 °C ÷ +90 °C |
| Lubrication Method | Greased for life |
