Description

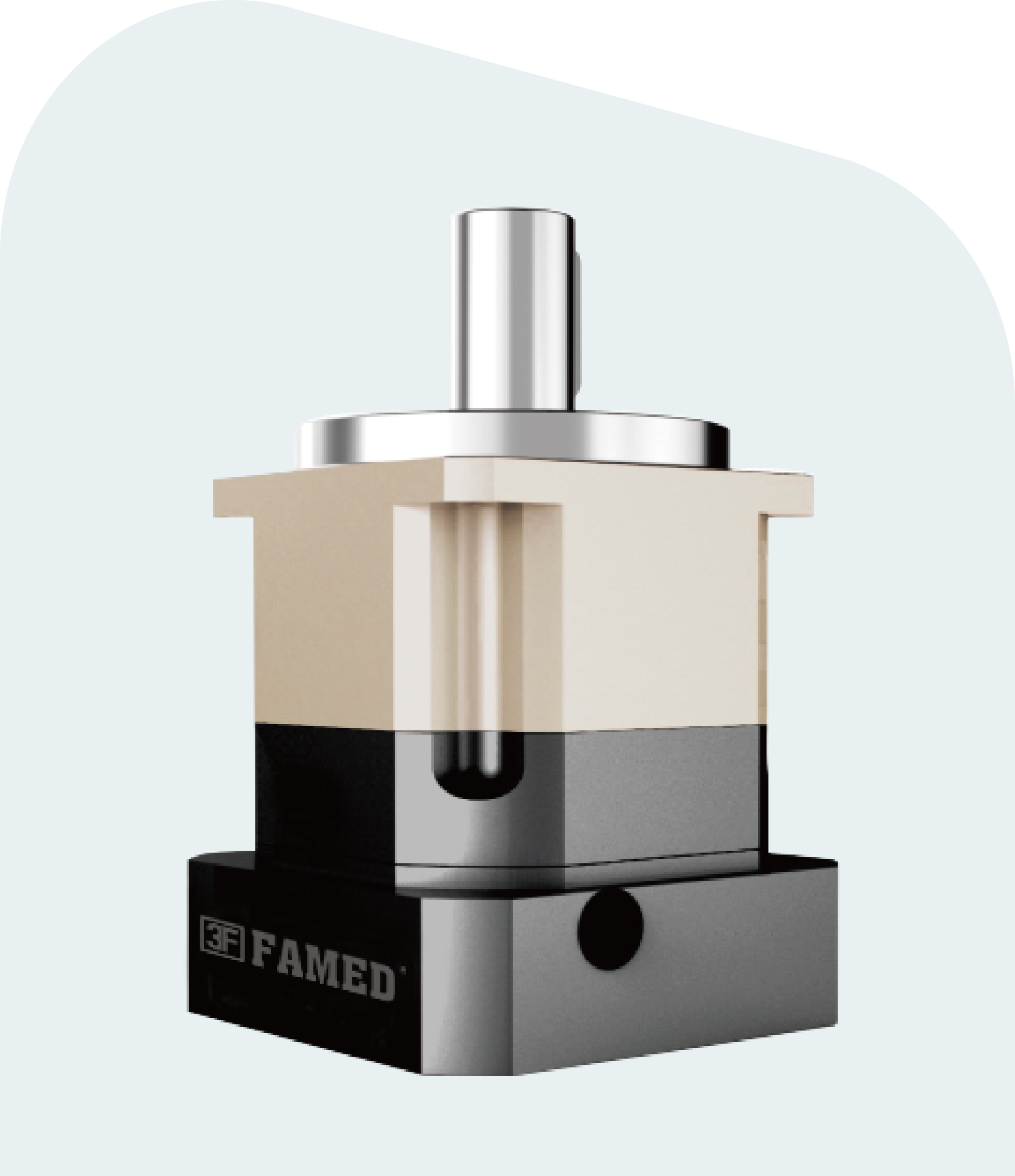

The PAB series planetary gearboxes combine high transmission efficiency with compact design, making them ideal for demanding motion control applications. Their planetary architecture ensures excellent torque density, smooth operation, and long service life. Available in frame sizes from 42 mm to 220 mm, the PAB series offers reduction ratios from 1:3 to 1:100, providing flexibility to meet a wide range of performance requirements. Designed for precision and reliability, these gearboxes are perfectly suited for integration with servo and industrial machinery.

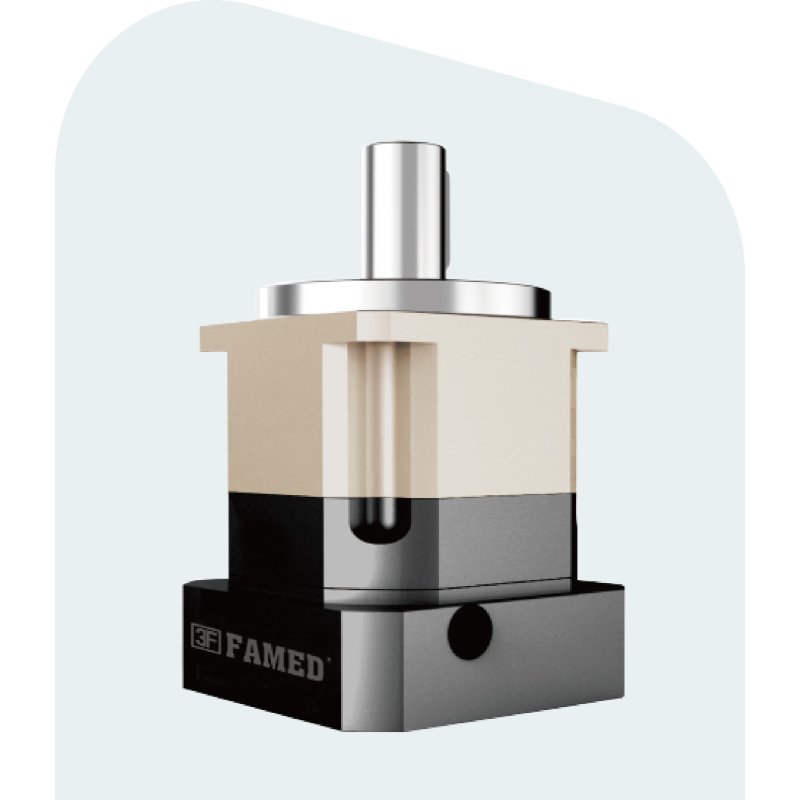

PAB060-30-S2-P1
PAB060 Planetary Gearhead | 2-Stages | Reduction Ratio 30:1 | Flange 60mm | Rated Output Torque 49Nm
Quantity
Technical specifications
| Reduction ratio | 30 |
|---|---|
| Rated input speed (rpm) | 4000 |
| Maximum Input Speed (rpm) | 6000 |
| Weight (Kg) | 1,48 |
| Design Type | Coaxial |
| Flange (mm) | 60 |
| Stage | 2 |
| Rated Output Torque (Nm) | 49 |
| Max. Output Torque (Nm) | 147 |
| Precision Backlash P1 (Arcmin) | 5 |
| Moment of Inertia (Kg*cm2) | 0.03 |
| Torsional Rigidity (Nm/arcmin) | 7 |
| Max. Radial Force (N) | 1300 |
| Max. Axial Force (N) | 700 |
| Service Life (Hr) | 21000 |
| Efficiency (%) | 0,94 |
| Operating Temperature (°C) | -15°C - +90°C |
| Lubrication | Synthetic Grease |
| Protection Class | IP65 |
| Noise Level (dB(A)) | 63 |
