Description
Motori passo-passo con elettronica integrata, progettati per semplificare l’architettura del sistema e ottimizzare l’ingombro. Soluzione compatta che unisce controllo e movimento in un unico componente.

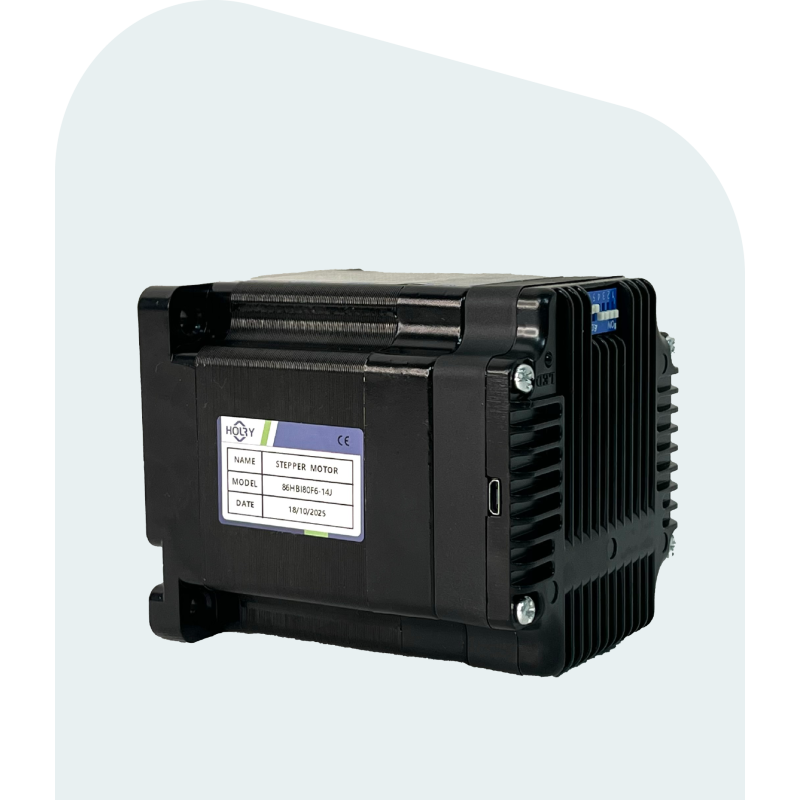

86HBI80F5-14J
Integrated Stepper Motor | NEMA 34 | Rated Current 5A | Holding Torque 4,5Nm
Quantity
Technical specifications
| NEMA | 34 |
|---|---|
| Weight (Kg) | 3 |
| Rated Current (A) | 5 |
| Size (mm) | 86 |
| Holding Torque (Nm) | 4,5 |
| Motor + drive Length (mm) | 102 |
| Rotor Inertia (g.cm²) | 1950 |
| Step Angle (°) | 1,8 |
| Radial Shaft Load (At End of Shaft) (N) | 220 |
| Axial Shaft Load Push (N) | 65 |
| Axial Shaft Load Pull (N) | 155 |
| (IP) Rating | IP54 |
| Operating Temperature (°C) | 0°C +40°C |
| Insulation Class | B, 130 °C |
| Power Supply | 18–70 VAC / 24–100 VDC |
| Operating mode | Step and Direction |
| Protective functions | Over current, over/under voltage, short circuit |
| Microstepping | Yes |
