Description
Motori passo-passo con elettronica integrata, progettati per semplificare l’architettura del sistema e ottimizzare l’ingombro. Soluzione compatta che unisce controllo e movimento in un unico componente.

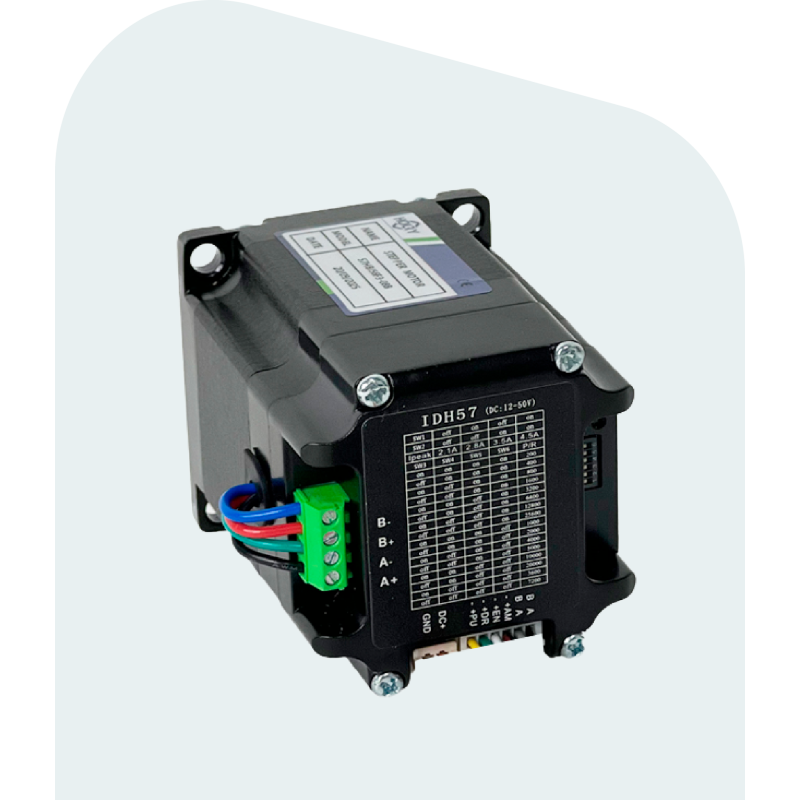

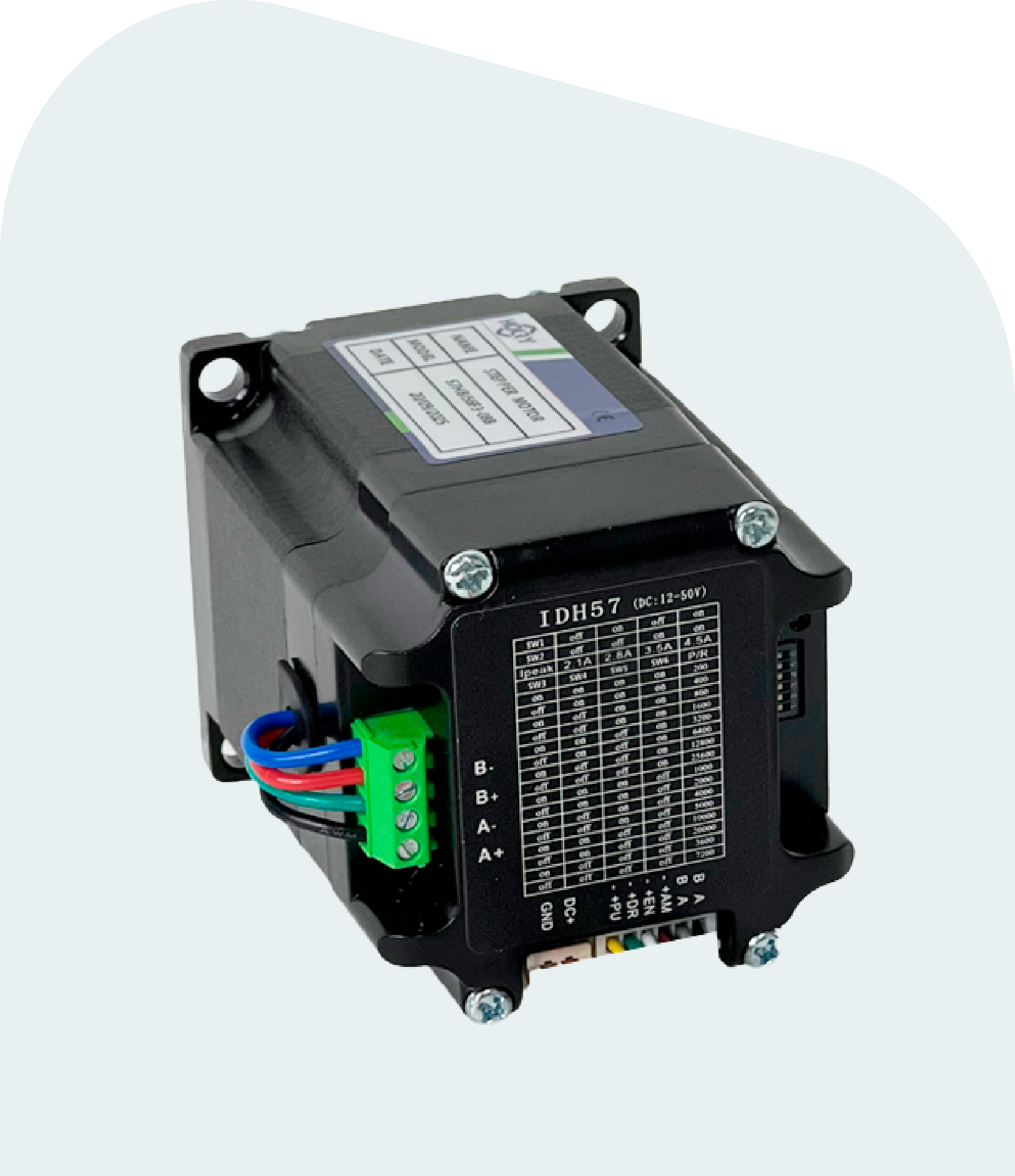

57HBI56F3-08B
Integrated Stepper Motor | NEMA 23 | Rated Current 3A | Holding Torque 1Nm
Quantity
Technical specifications
| NEMA | 23 |
|---|---|
| Weight (Kg) | 0,8 |
| Rated Current (A) | 3 |
| Size (mm) | 57 |
| Holding Torque (Nm) | 1 |
| Motor + drive Length (mm) | 76 |
| Rotor Inertia (g.cm²) | 280 |
| Step Angle (°) | 1,8 |
| Radial Shaft Load (At End of Shaft) (N) | 70 |
| Axial Shaft Load Push (N) | 40 |
| Axial Shaft Load Pull (N) | 130 |
| (IP) Rating | IP54 |
| Operating Temperature (°C) | 0°C +40°C |
| Insulation Class | B, 130 °C |
| Power Supply | 12–50 VDC |
| Operating mode | Step and Direction |
| Protective functions | Over current, over/under voltage, short circuit |
| Microstepping | Yes |
